Agila
Ø50mm
80kg
galvanized
swivel_brake
Technical Specifications
Core attributes
TypeSwivel castor with wheel brake
Overall width43 mm
Load capacity at 3 km/h40 kg
Load capacity Static80 kg
Overall height69 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-25 °C
Overall weight0.21 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeSquare plate
Plate hole diameter6.3 mm
Plate hole length (Maximum)48 mm
Plate hole length (Minimum)38 mm
Plate hole width (Maximum)48 mm
Plate hole width (Minimum)38 mm
Plate length60 mm
Plate width60 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, medium

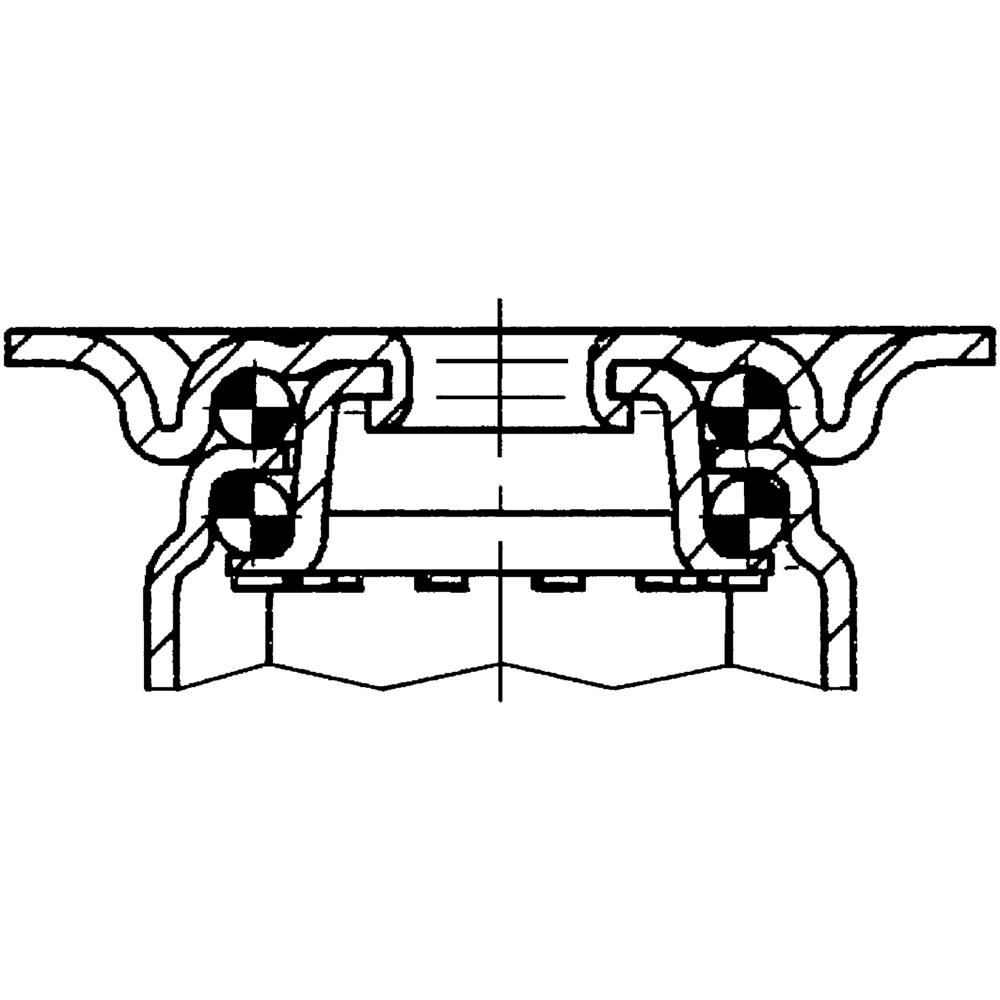

Swivel bearingTwo ball races
Swivel interference164 mm
Offset24 mm
Swivel radius82 mm
Wheel
Hardness of tread (A)92 Shore A
Hardness of tread (D)42 Shore D
Body materialPolyamide
Tread materialPolyurethane, injected
Tread width19 mm
Diameter50 mm
Body width20 mm
ThreadguardsWith threadguard
BearingPrecision ball bearing
Wheel colorSilver grey (RAL7001)
