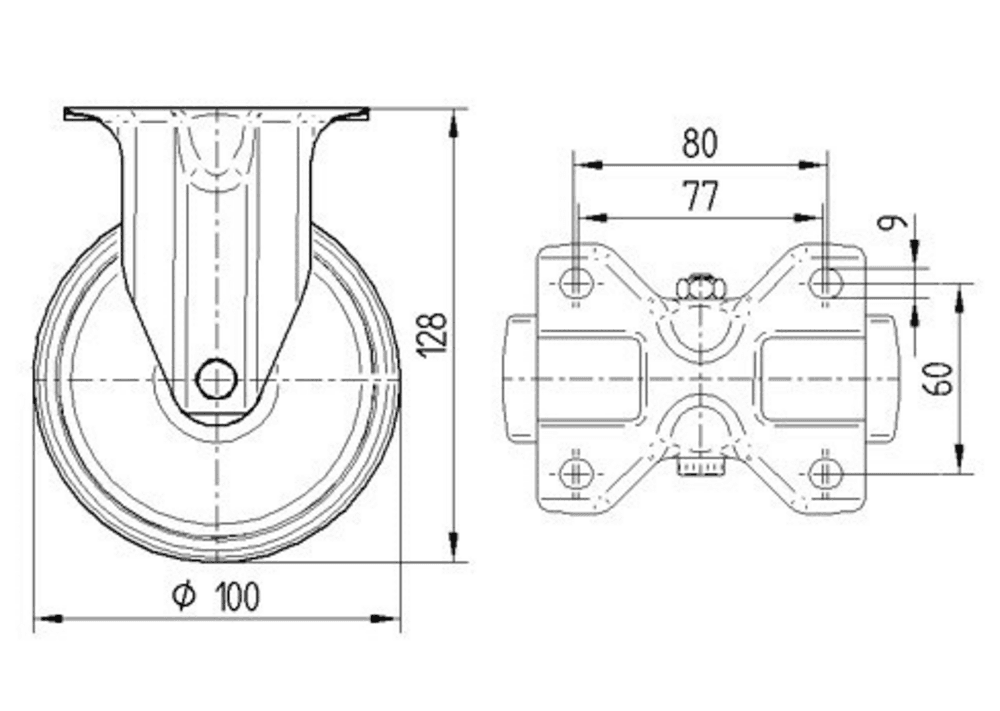

Fixed castor 100 mm
Ø100mm
400kg
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width85 mm
Load capacity at 4 km/h200 kg
Load capacity Static400 kg
Overall height128 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-40 °C
Overall weight0.37 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeSmall rectangular plate
Plate hole diameter9 mm
Plate hole length (Maximum)60 mm
Plate hole length (Minimum)77 mm
Plate hole width (Maximum)80 mm
Plate hole width (Minimum)77 mm
Plate length103 mm
Plate width85 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide
Tread materialIdentical with wheel body
Tread width36 mm
Diameter100 mm
Body width36 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPlain bearing
Wheel colorNatural white
