Back to catalog

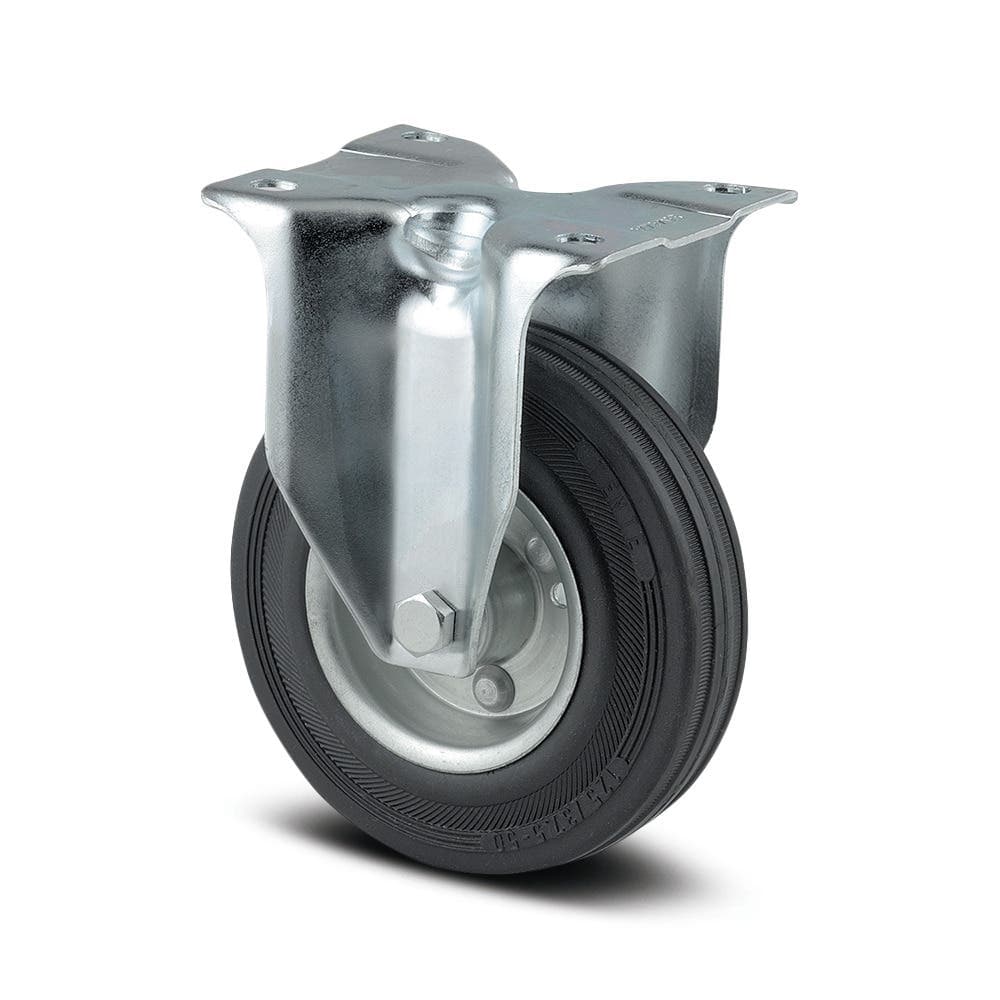

Fixed castor 125 mm
Ø125mm
200kg
galvanized
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width85 mm
Load capacity at 4 km/h100 kg
Load capacity Static200 kg
Overall height155 mm
Temperature range (Maximum)85 °C
Temperature range (Minimum)-20 °C
Overall weight0.93 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeSmall rectangular plate
Plate hole diameter9 mm
Plate hole length (Maximum)60 mm
Plate hole length (Minimum)77 mm
Plate hole width (Maximum)80 mm
Plate hole width (Minimum)77 mm
Plate length103 mm
Plate width85 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy
Wheel
Hardness of tread (A)80 Shore A
Body materialSheet Steel
Tread materialSolid rubber, black
Tread width37 mm
Diameter125 mm
Body width37 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingRoller bearing
Wheel colorBlue passivated
