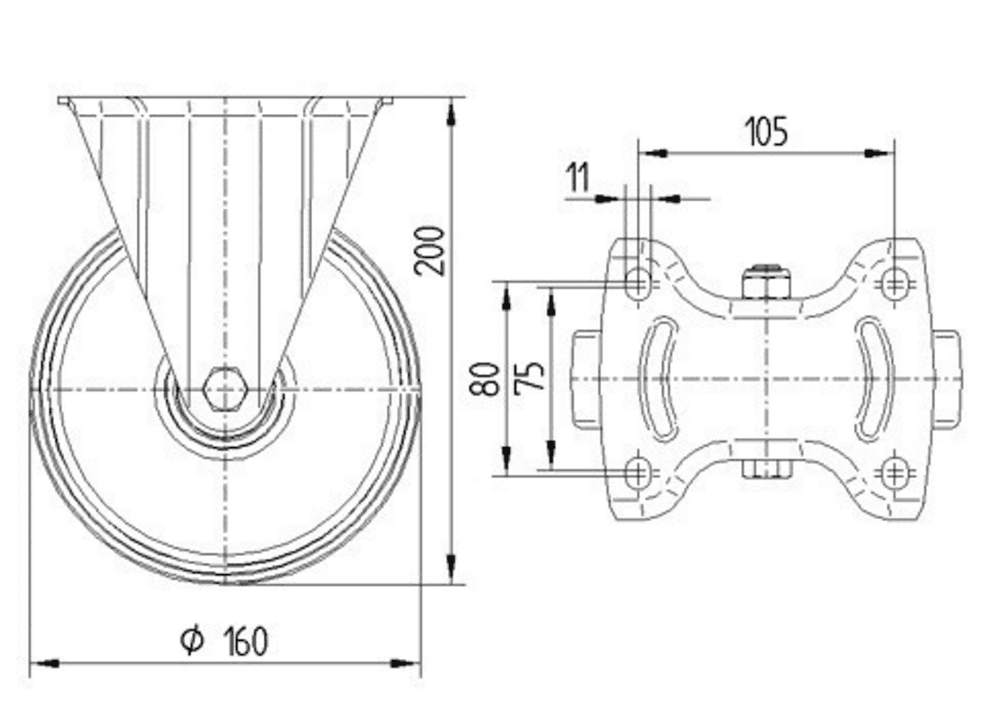

Fixed castor 160 mm
Ø160mm
1000kg
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width115 mm
Load capacity at 4 km/h500 kg
Load capacity Static1000 kg
Overall height200 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-40 °C
Overall weight1.43 kg
Electric conductive✘

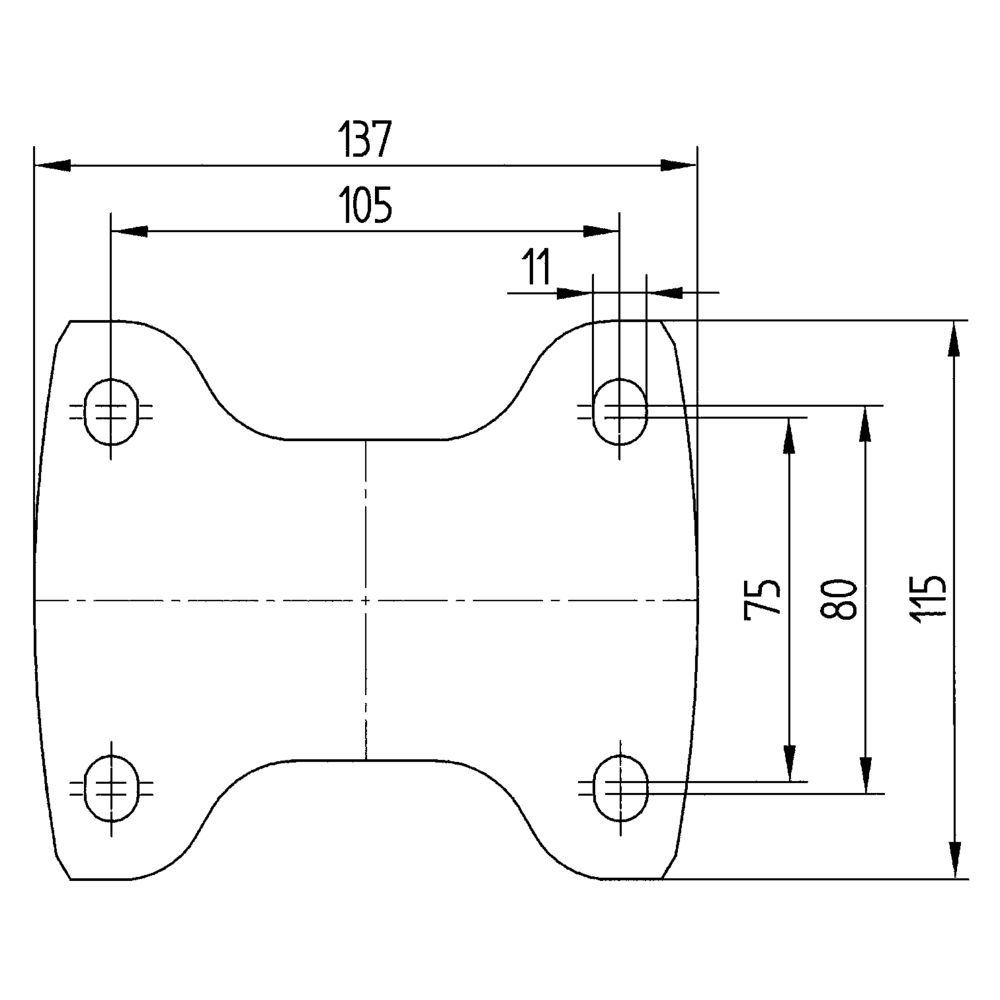

Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length137 mm
Plate width115 mm
Housing
ColourStainless steel
Fork shapeBroad
Material forkStainless steel, heavy
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide
Tread materialIdentical with wheel body
Tread width40 mm
Diameter160 mm
Body width40 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPlain bearing
Wheel colorNatural white
