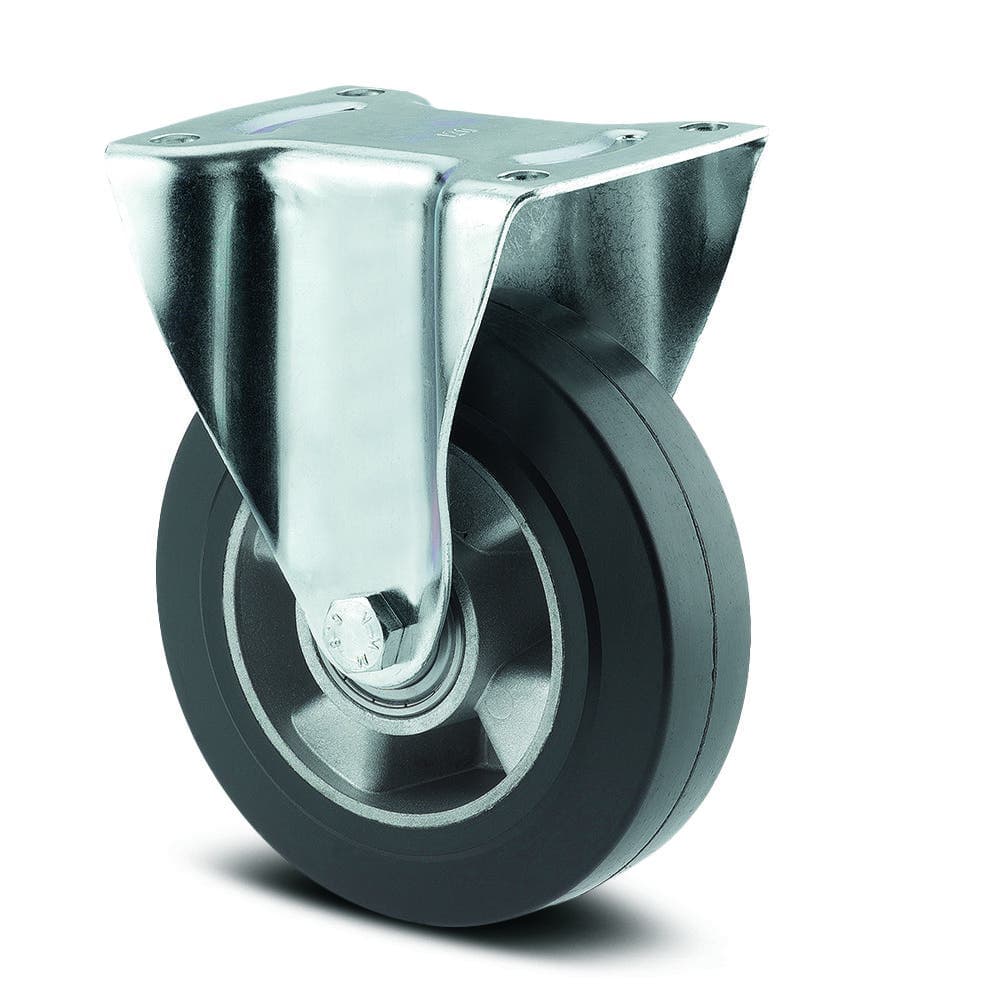

Fixed castor 160 mm
Ø160mm
700kg
galvanized
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width115 mm
Load capacity at 4 km/h350 kg
Load capacity at 6 km/h250 kg
Load capacity Static700 kg
Overall height200 mm
Temperature range (Maximum)85 °C
Temperature range (Minimum)-20 °C
Overall weight2.23 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length137 mm
Plate width115 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy
Swivel interference160 mm
Wheel
Hardness of tread (A)68 Shore A
Body materialAluminium
Tread materialElastic tire, black, vulcanized
Tread width50 mm
Diameter160 mm
Body width50 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPrecision ball bearing
Wheel colorMetallic
