Swivel castor 100 mm
Ø100mm
400kg
swivel
Technical Specifications
Core attributes
TypeSwivel castor
Overall width75 mm
Load capacity at 4 km/h200 kg
Load capacity Static400 kg
Overall height128 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-40 °C
Overall weight0.65 kg
Electric conductive✘

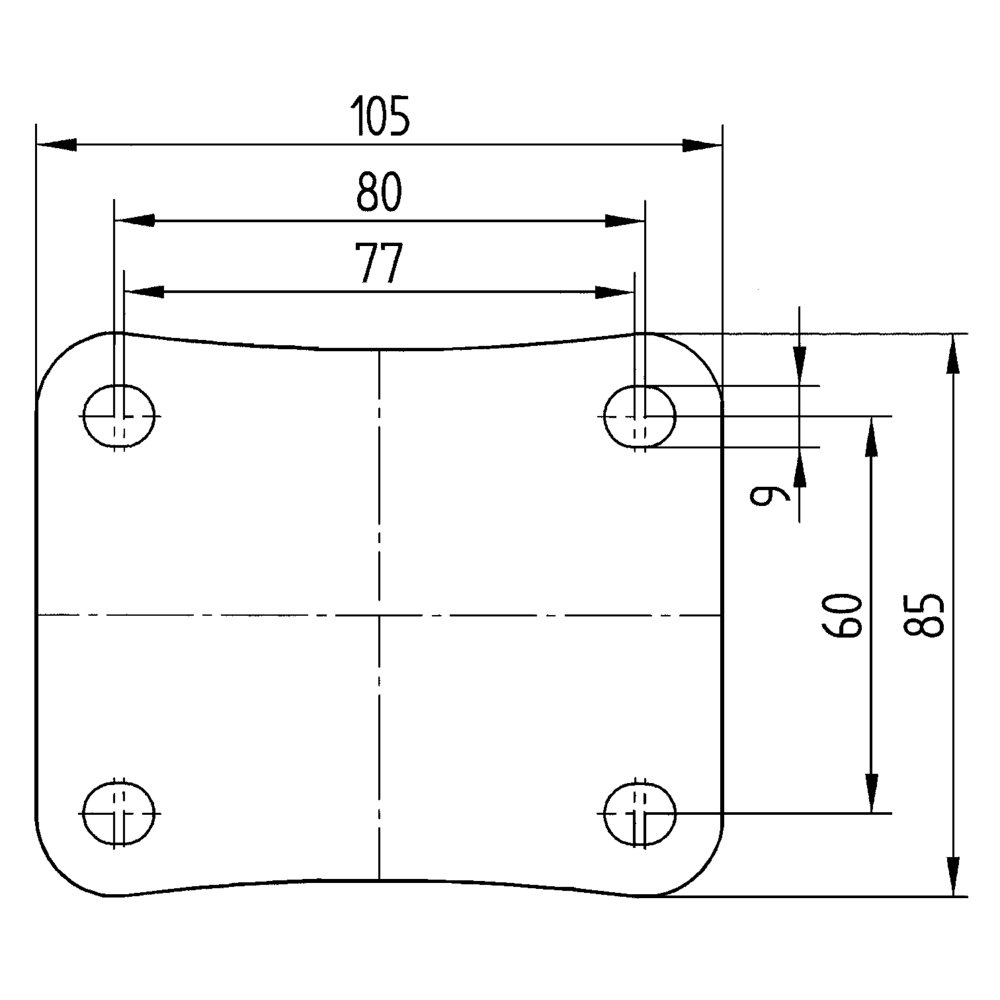

Fitting
Fitting typeSmall rectangular plate
Plate hole diameter9 mm
Plate hole length (Maximum)60 mm
Plate hole length (Minimum)77 mm
Plate hole width (Maximum)80 mm
Plate hole width (Minimum)77 mm
Plate length105 mm
Plate width85 mm
Housing
ColourStainless steel
Fork shapeBroad
Material forkStainless steel, heavy
Swivel bearingTwo ball races
Dome diameter75 mm
Swivel interference182 mm
Offset41 mm
Swivel radius91 mm
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide
Tread materialIdentical with wheel body
Tread width36 mm
Diameter100 mm
Body width36 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPlain bearing
Wheel colorNatural white
