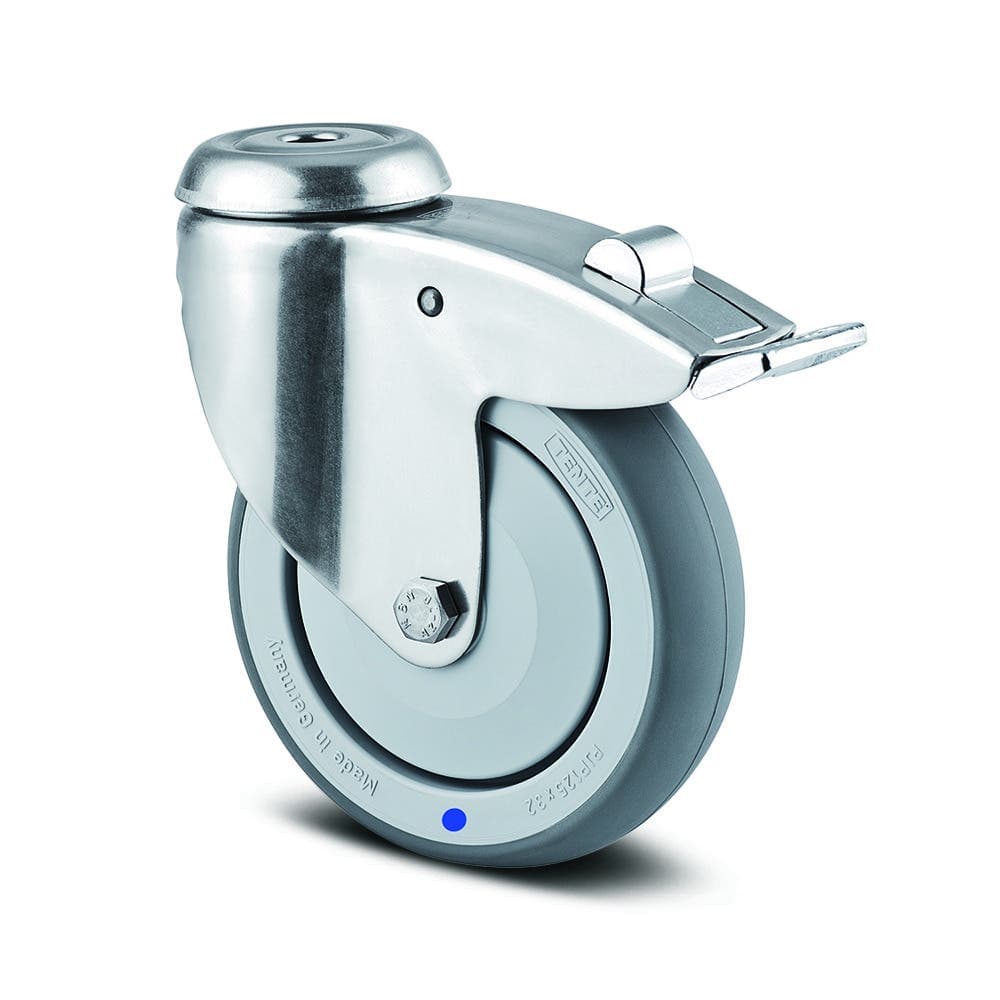

Swivel castor 125 mm
Ø125mm
200kg
inox
swivel

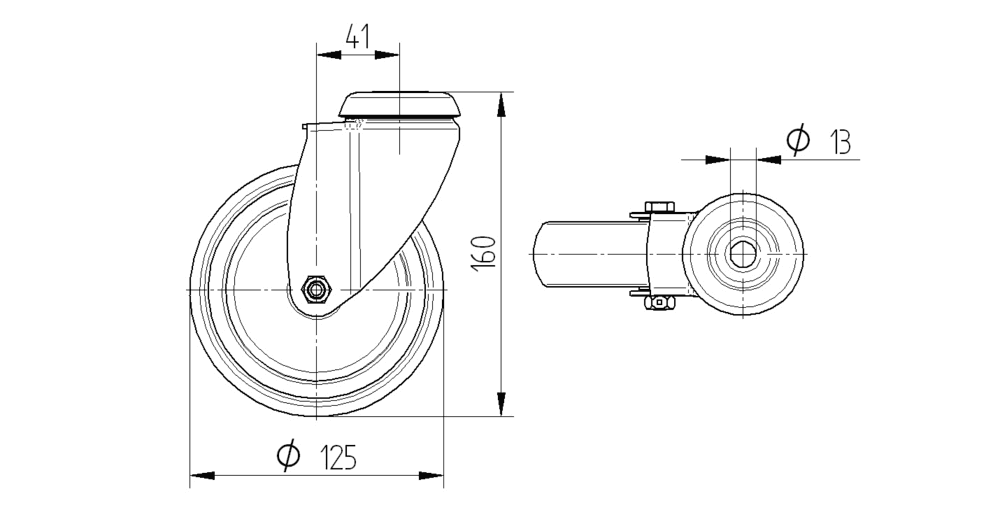

Technical Specifications
Core attributes
TypeSwivel castor
Overall width60 mm
Load capacity at 3 km/h100 kg
Load capacity Static200 kg
Overall height160 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-20 °C
Overall weight0.69 kg
Electric conductive✘
Fitting
HintCastors can be mounted with standard screws of any length.
Fitting typeBolt hole
Bolt hole diameter13 mm
Housing
ColourStainless steel
Fork shapeBroad
Material forkStainless steel, medium
Swivel bearingTwo ball races
Dome diameter60 mm
Swivel interference207 mm
Offset41 mm
Swivel radius103.5 mm
Wheel
Hardness of tread (A)87 Shore A
Body materialPolypropylene
Tread materialThermoplastic rubber
Tread width32 mm
Diameter125 mm
Body width32 mm
ThreadguardsWith threadguard
BearingPrecision ball bearing, stainless
Wheel colorSilver grey (RAL7001)
