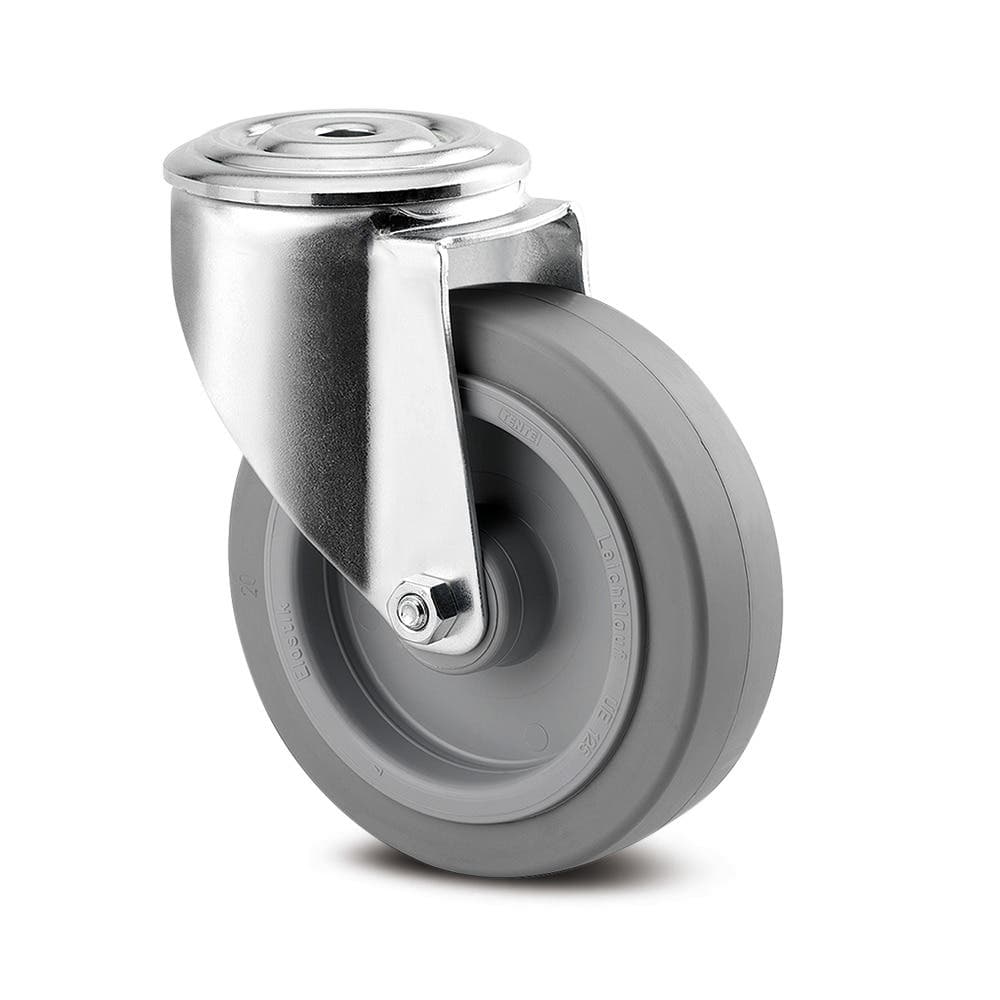

Swivel castor 160 mm
Ø160mm
400kg
galvanized
swivel
Technical Specifications
Core attributes
TypeSwivel castor
Overall width96 mm
Load capacity at 4 km/h200 kg
Load capacity Static400 kg
Overall height195 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-20 °C
Overall weight2 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeBolt hole
Bolt hole diameter13 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy
Swivel bearingTwo ball races
Dome diameter96 mm
Swivel interference270 mm
Offset55 mm
Swivel radius135 mm
Wheel
Hardness of tread (A)63 Shore A
Body materialPolyamide
Tread materialElastic tire, non-marking, vulcanized
Tread width46 mm
Diameter160 mm
Body width46 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingRoller bearing
Wheel colorSilver grey (RAL7001)
