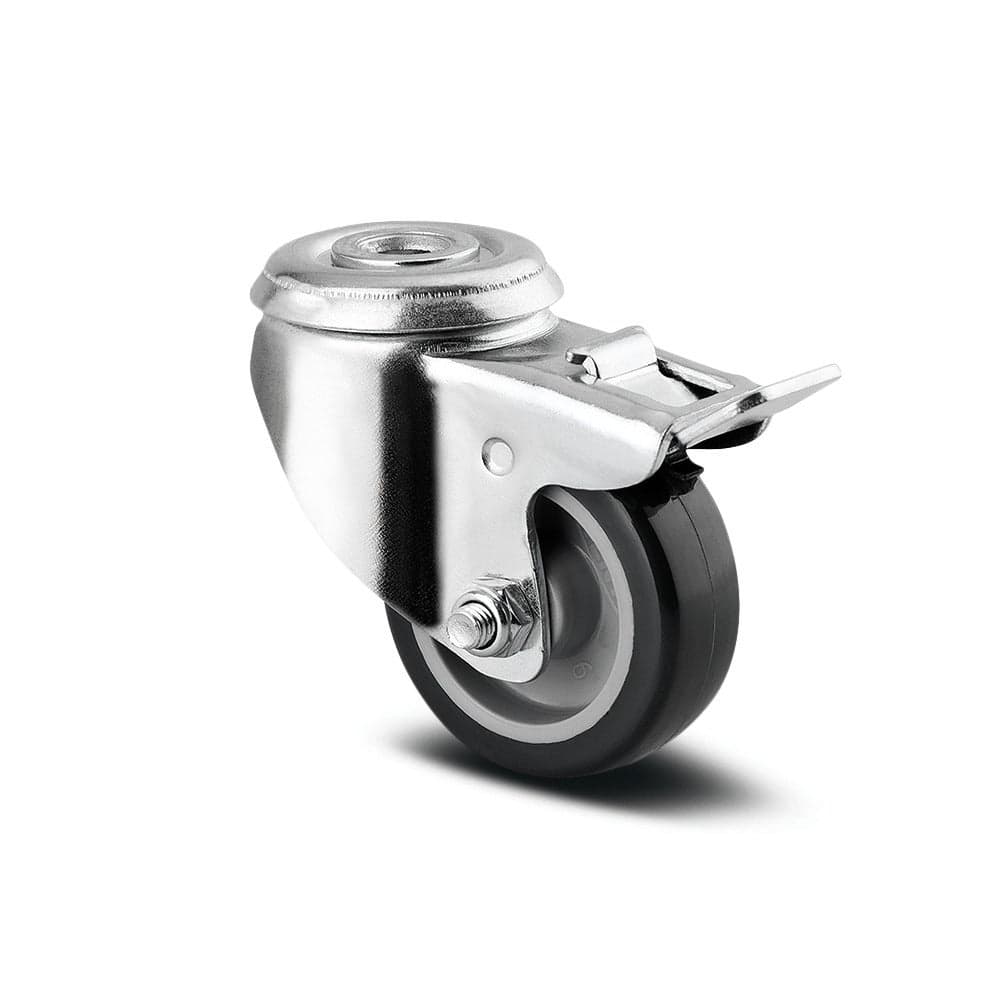

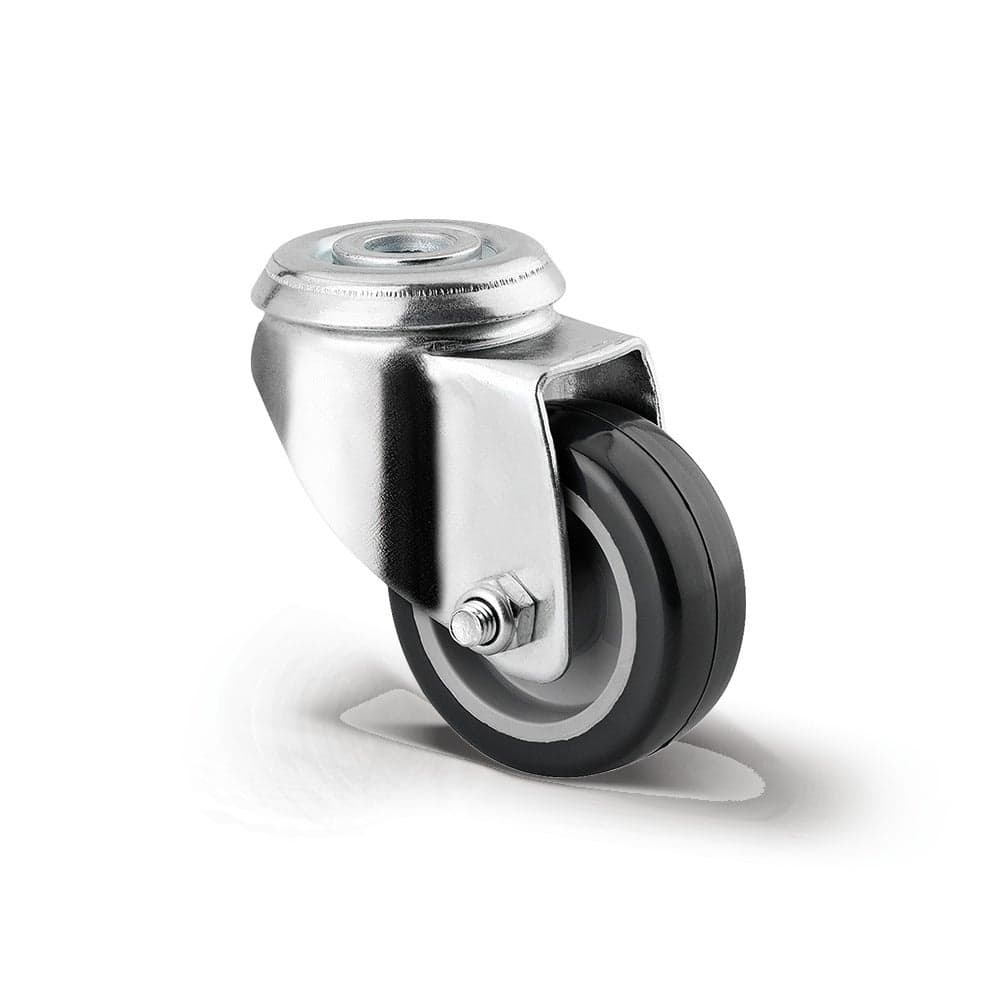

Swivel castor 50 mm
Ø50mm
80kg
swivel
Technical Specifications
Core attributes
TypeSwivel castor
Overall width44 mm
Load capacity at 3 km/h40 kg
Load capacity Static80 kg
Overall height70 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-20 °C
Overall weight0.16 kg
Electric conductive✘
Stainless✘
Fitting
HintCastors can be mounted with standard screws of any length.
Fitting typeBolt hole
Bolt hole diameter11 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, light
Swivel bearingTwo ball races
Dome diameter41 mm
Swivel interference100 mm
Offset25 mm
Swivel radius50 mm
Wheel
Hardness of tread (A)91 Shore A
Hardness of tread (D)40 Shore D
Body materialPolypropylene
Tread materialPolyurethane, injected
Tread width19 mm
Diameter50 mm
Body width19 mm
ThreadguardsWithout threadguard
BearingPlain bearing
Wheel colorSilver grey (RAL7001)
