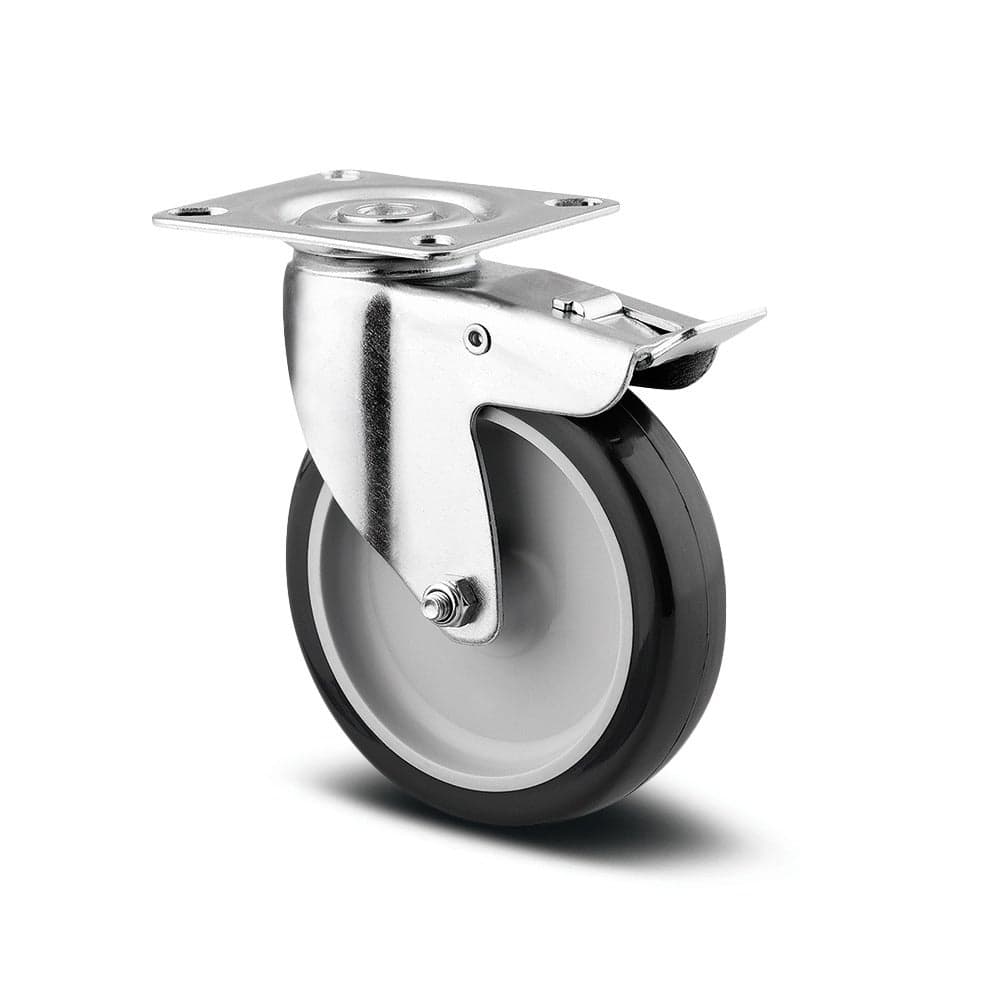

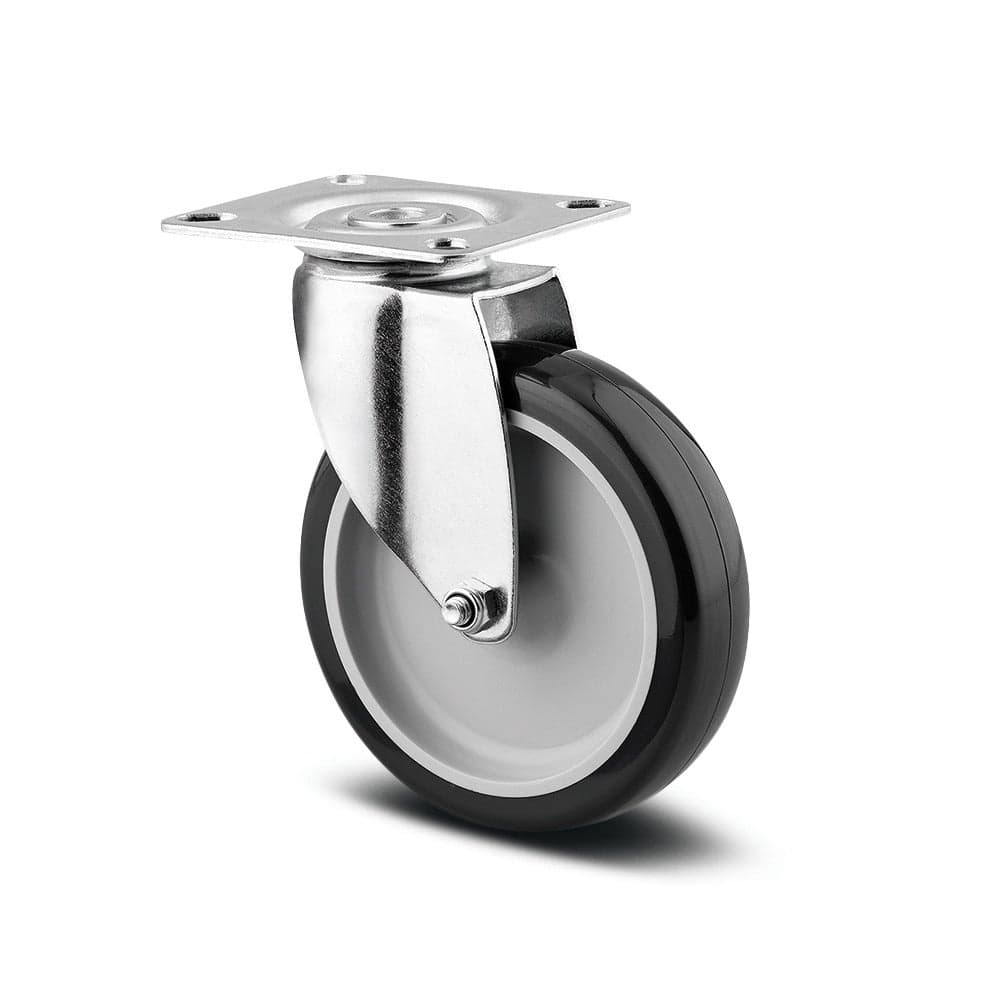

Swivel castor 75 mm
Ø75mm
120kg
swivel
Technical Specifications
Core attributes
TypeSwivel castor
Overall width44 mm
Load capacity at 3 km/h60 kg
Load capacity Static120 kg
Overall height100 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-20 °C
Overall weight0.27 kg
Electric conductive✘
Stainless✘
Fitting

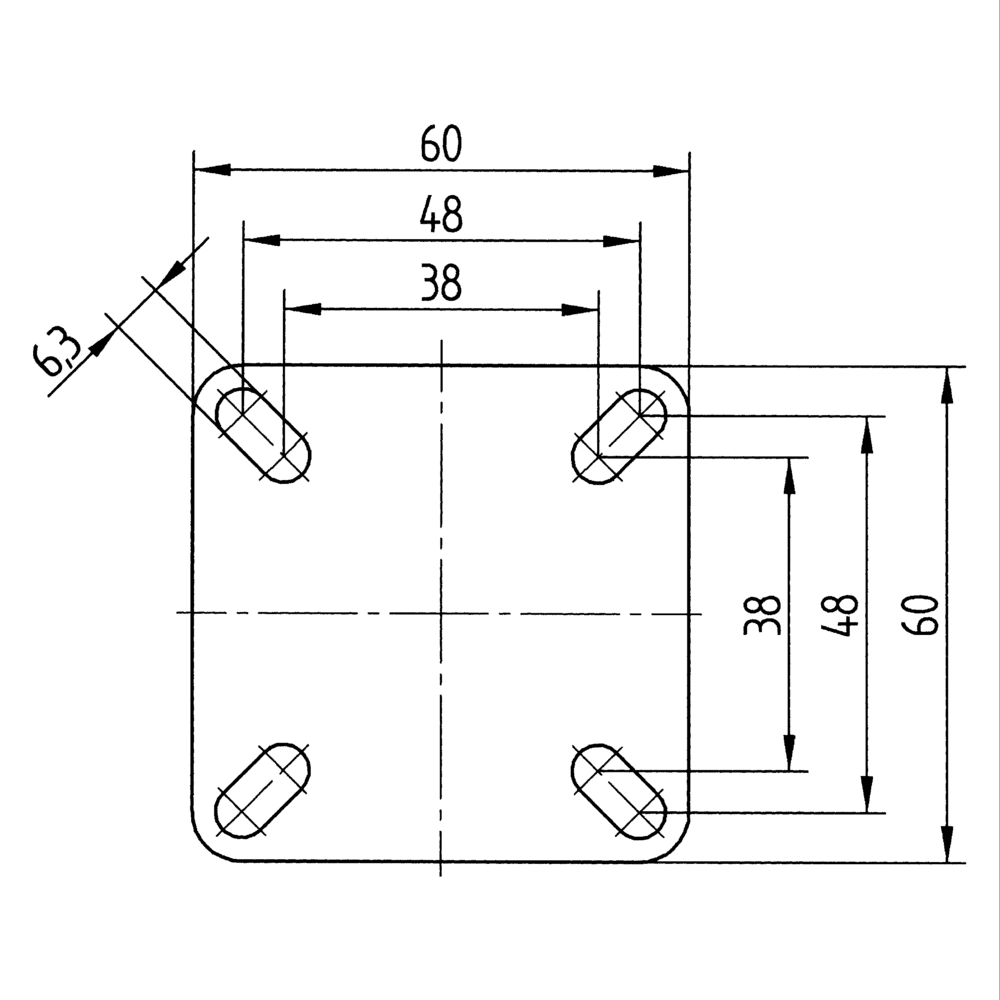

Fitting typeSquare plate
Plate hole diameter6.3 mm
Plate hole length (Maximum)48 mm
Plate hole length (Minimum)38 mm
Plate hole width (Maximum)48 mm
Plate hole width (Minimum)38 mm
Plate length60 mm
Plate width60 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, light

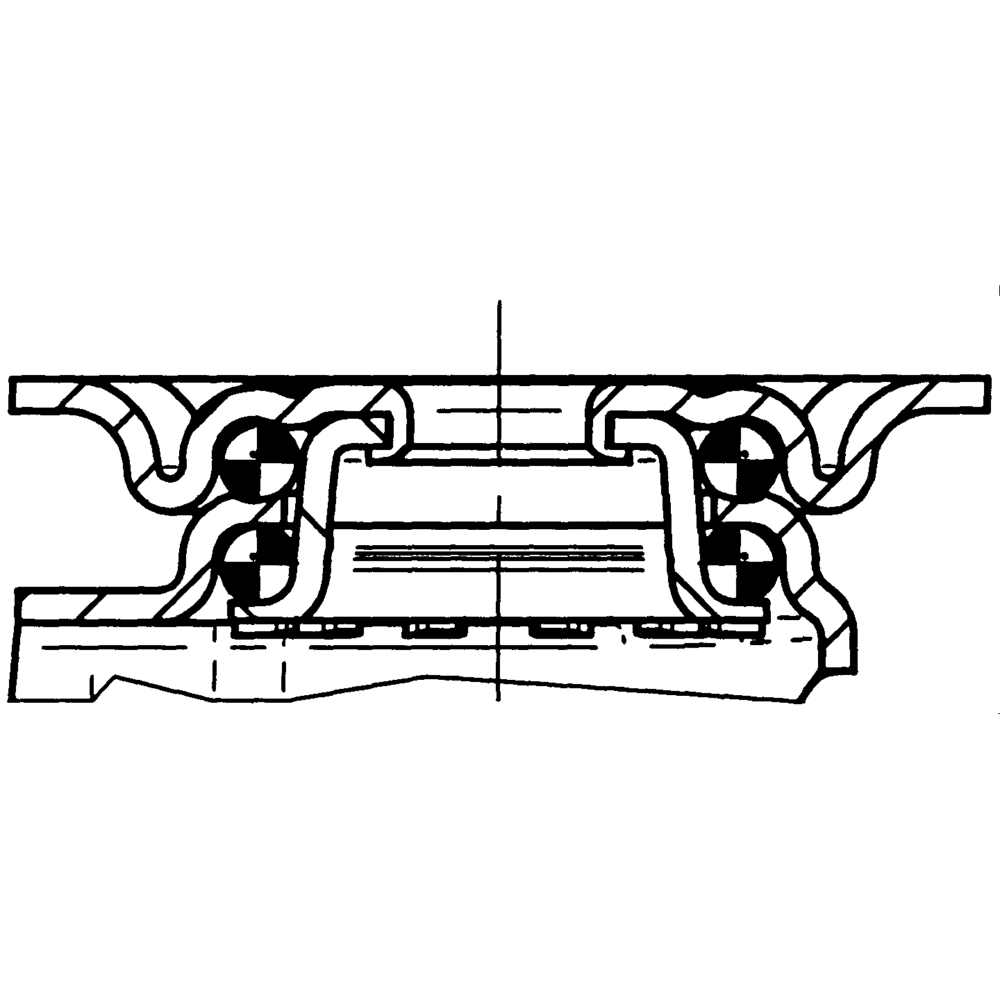

Swivel bearingTwo ball races
Dome diameter41 mm
Swivel interference125 mm
Offset25 mm
Swivel radius62.5 mm
Wheel
Hardness of tread (A)91 Shore A
Hardness of tread (D)40 Shore D
Body materialPolypropylene
Tread materialPolyurethane, injected
Tread width25 mm
Diameter75 mm
Body width25 mm
ThreadguardsWithout threadguard
BearingPlain bearing
Wheel colorSilver grey (RAL7001)
