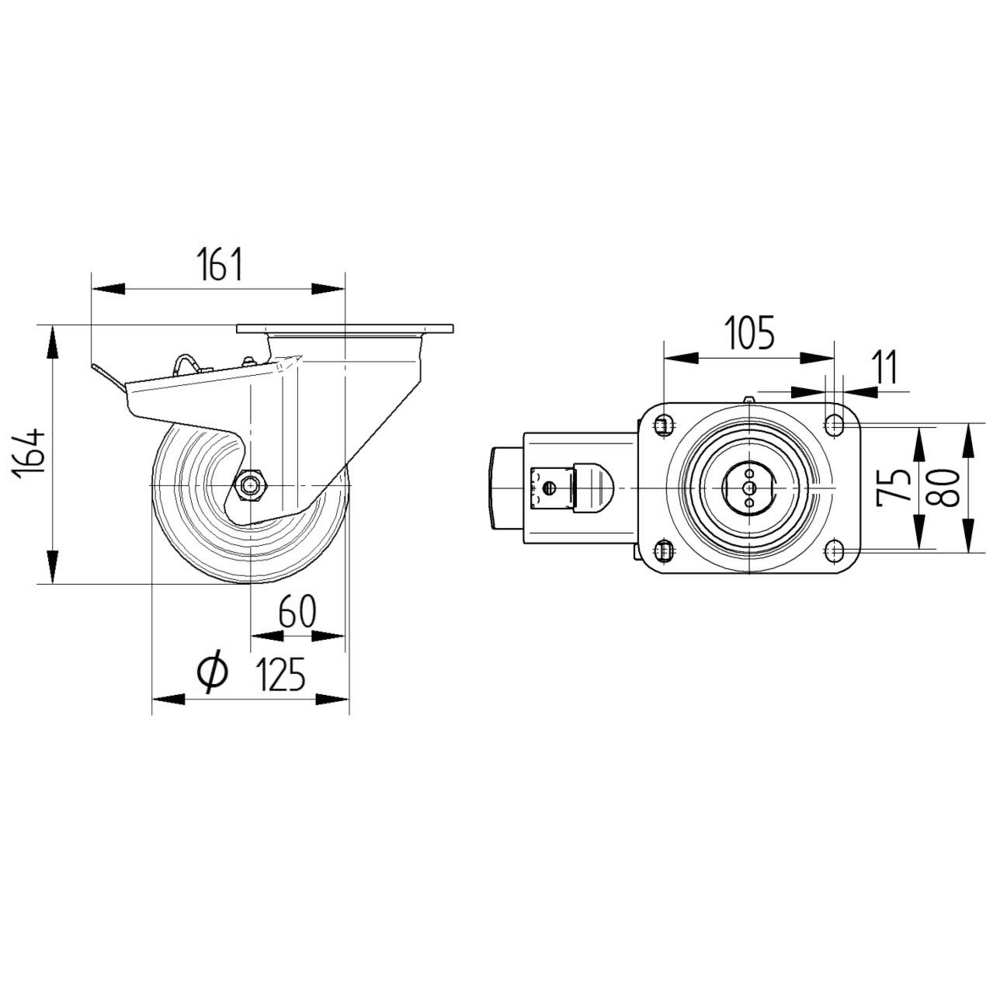

Swivel castor with total lock 125 mm
Ø125mm
1400kg
galvanized
swivel_brake
Technical Specifications
Core attributes
TypeSwivel castor with total lock
Overall width96 mm
Load capacity at 4 km/h700 kg
Load capacity at 6 km/h560 kg
Load capacity Static1400 kg
Overall height164 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-30 °C
Overall weight3.03 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length137 mm
Plate width105 mm
Housing
ColourBlue passivated
Fork shapeBroad, reinforced
Material forkSteel sheet, very heavy
Swivel bearingTwo ball races, reinforced or stainless
Dome diameter96 mm
Swivel interference322 mm
Offset60 mm
Swivel radius161 mm
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide, heavy
Tread materialIdentical with wheel body
Tread width50 mm
Diameter125 mm
Body width50 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPrecision ball bearing
Wheel colorNatural white
