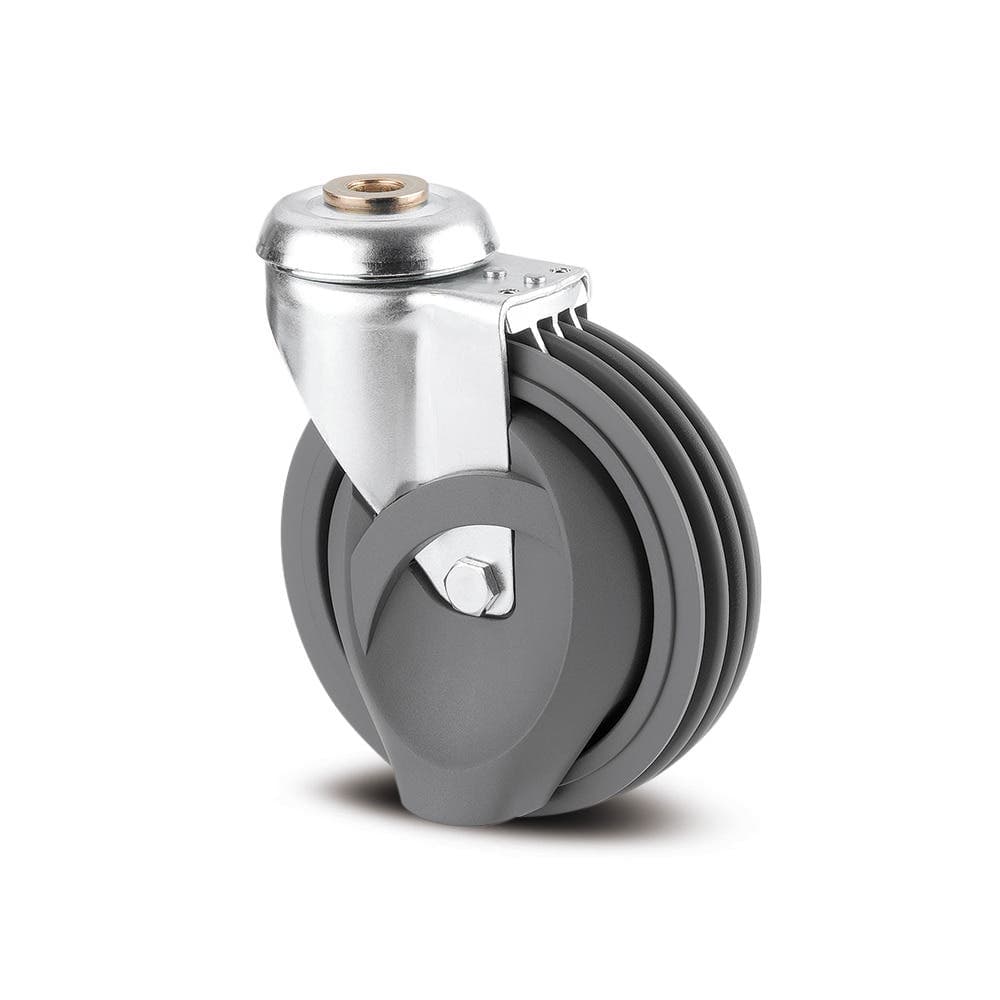

Swivel castor with wheel brake 125 mm
Ø125mm
160kg
galvanized
swivel_brake
Technical Specifications
Core attributes
TypeSwivel castor with wheel brake
Load capacity at 3 km/h80 kg
Load capacity Static160 kg
Overall height153 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-40 °C
Overall weight0.73 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeBolt hole
Bolt hole diameter11 mm
Housing
Fork shapeSpecial Function
Material forkSteel sheet, medium
Swivel bearingTwo ball races
Swivel interference205 mm
Offset40 mm
Swivel radius102.5 mm
Wheel
Hardness of tread (D)59 Shore D
Body materialPolyurethane injected
Tread materialDouble flanged with tracks
Tread width32 mm
Diameter125 mm
ThreadguardsWith threadguard
BearingPrecision ball bearing
